Accessory
UnoMeter™ Exchange Bagssterile replacement bags for the UnoMeter™ range
Sterile, single-use drainage bags for extending or replacing the collection bag on UnoMeter™ 500, Safeti™ Plus, and Safeti™ Max systems.
Intended use
Replacement or extension drainage bag for compatible UnoMeter™ hourly diuresis systems in critical care.
Specifications
- Volumes
- 2,000 ml, 3,000 ml
- Compatibility
- UnoMeter™ 500, Safeti™ Plus, Safeti™ Max
- Outlet
- Free-flow bottom outlet
CE-marked medical device. For professional use only. Refer to instructions for use.
Clinical benefits
Why clinicians choose UnoMeter™ Exchange Bags
- 01Extends dwell time without replacing the full system
- 02Maintains a closed drainage circuit
- 03Standardised handling across the UnoMeter™ range
Specifications
Product range & specifications
| REF No | Bag volume | Bottom outlet (free flow) | NRV in bag |
|---|---|---|---|

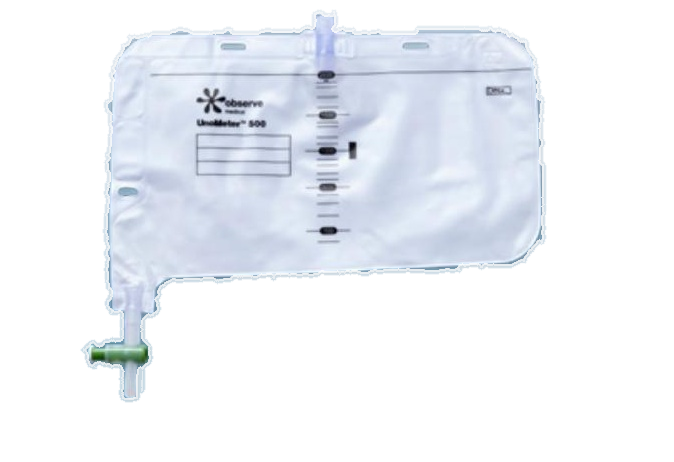

| 84077181 | 2000 ml | Yes | Yes |

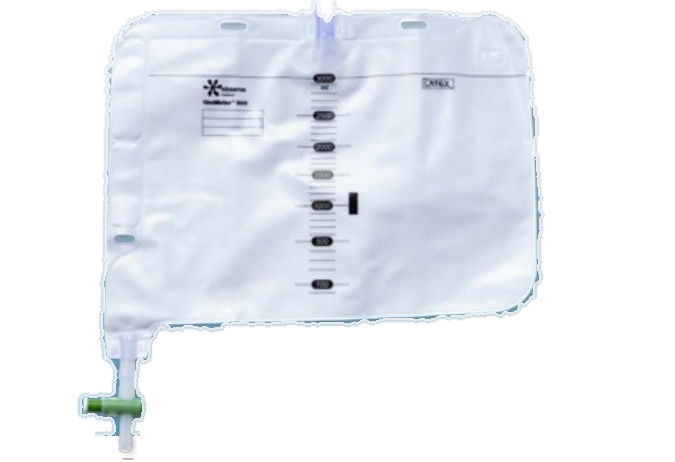

| 84062182 | 3000 ml | Yes | Yes |
Material specifications
| Contains latex or DEHP? | No |
|---|---|
| Bag incl. bottom outlet | PVC (DEHP free), Versapor RC membrane, PE, ABS |
| Packaging materials | PE, PET/PE composite film, corrugated cardboard |
Sterilisation
| Sterile? | Yes |
|---|---|
| Sterilised by | Ethylene oxide |
| Shelf life | 3 years |
Certifications
| CE-marking? | Yes (CE 2862) |
|---|---|
| Product classification | Class Is (EU) |
| Quality system certified to | ISO 13485 |
| Global Medical Device Nomenclature (GMDN) | 32072 |
| EMDN Code | A06030302 |
Storage and handling
Instructions for use included.
Packaging specifications
| REF No | Quantity (pcs) | Dimensions (mm) | Gross weight (kg) | Volume (m³) |
|---|---|---|---|---|
| 84077181 | 50 | 400 x 360 x 200 | 3,5 | 0,029 |
| 84062182 | 40 | 400 x 360 x 200 | 3,6 | 0,029 |
MAS-0680-v2.0
