Superior workflow and infection control · Flagship
UnoMeter™ Safeti™ Max
Fourteen-day use with documented infection control and health-economic benefits. Our most advanced closed-system urine meter.
Manual · IAP monitoring

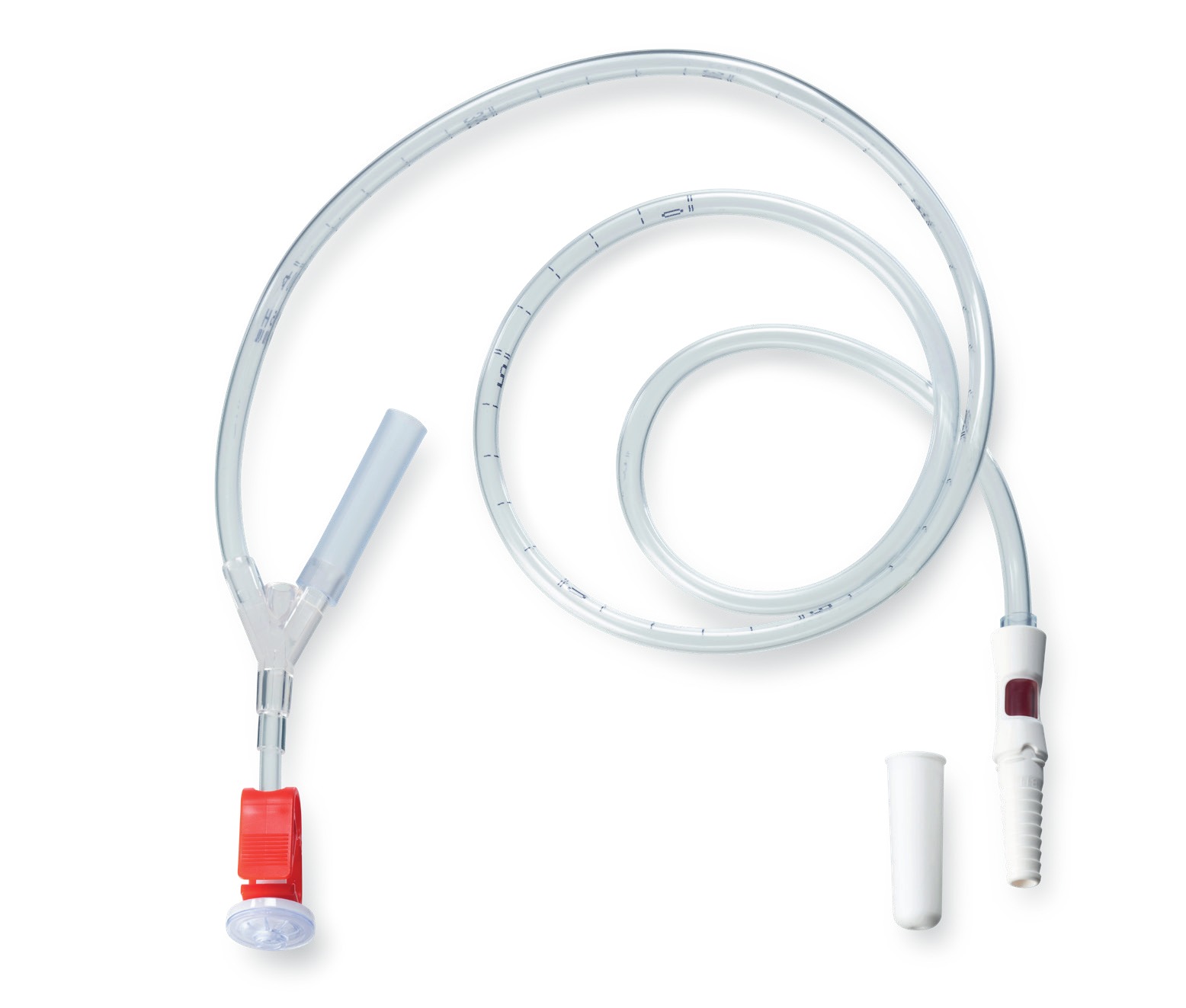

UnoMeter™ Abdo-Pressure™intra-abdominal pressure monitoring
A manometer for monitoring intra-abdominal pressure, with the needle-free KombiKon™ connector and an integrated inspection window.
Intended use
Manometer for monitoring intra-abdominal pressure (IAP). Must be connected to a urethral Foley catheter and urine collection device. The product is intended for single use only. The product is equipped with the needle-free KombiKon™ connector with an integrated inspection window.
Specifications
- Sample port
- KombiKon™ needle-free, with inspection window
- Sterile
- Yes, sterilised by ethylene oxide
- Shelf life
- 5 years
- CE-marking
- Yes (CE 0373)
- Product classification
- Class IIa (EU)
CE-marked medical device. For professional use only. Instructions for use included.

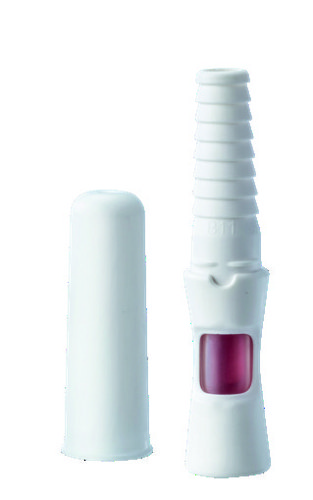

Needle-free sampling
KombiKon™
Needle-free sample port with inspection window.
Specifications
Product range & specifications
| REF No * | Description |
|---|---|
| FP0000001 | UnoMeter™ - Abdo-Pressure™ IAP Monitoring System |
* Product may not be available in all countries.
Material specifications
| Contains latex or DEHP? | No |
|---|---|
| Contains cotton? | No |
| Contains paper? | Yes (packaging only) |
| UnoMeter™ Abdo-Pressure™ IAP manometer | Polyethylene (clamp), Polyvinyl chloride (tubing, connector), 1.2 micron Acrylic copolymer + Nylon hydrophobic membrane (filter) |
| KombiKon™ needle-free sample port | Polyvinyl chloride, Polypropylene, High density polyethylene, Polyethylene, Thermoplastic elastomer |
Sterilisation
| Sterile? | Yes |
|---|---|
| Sterilised by | Ethylene oxide |
| Shelf life | 5 years |
Certifications
| CE-marking? | Yes (CE 0373) |
|---|---|
| Product classification | Class IIa (EU) |
| Quality system certified to | ISO 13485 |
| Global Medical Device Nomenclature (GMDN) | 47505 |
| EMDN Code | U050401 |
Storage and handling
Instructions for use included.
Packaging specifications
| REF No | Shelf box: Quantity (pcs) | Shelf box: Dimensions (mm) L x W x D | Shipping Carton: Quantity (pcs) | Shipping Carton: Dimensions (mm) L x W x D | Piece identifier GTIN - UDI |
|---|---|---|---|---|---|
| FP0000001 | 20 | 410 x 290 x 160 | 480 | 600 x 830 x 1,020 | 08056149540626 |
MAS-0280-v3.0
