UnoMeter™ A6 and A4
Sterile Closed System bags
Our sterile Closed System bags have been designed to enable effective and simple handling and at the same time to optimise the product's ability to reduce the risk of infection.
The main benefits are:

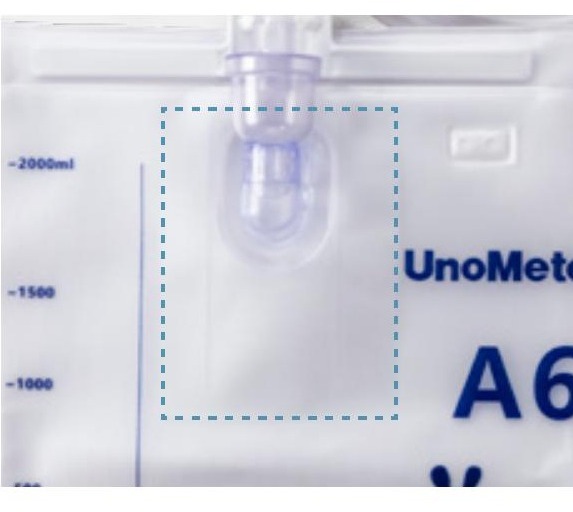

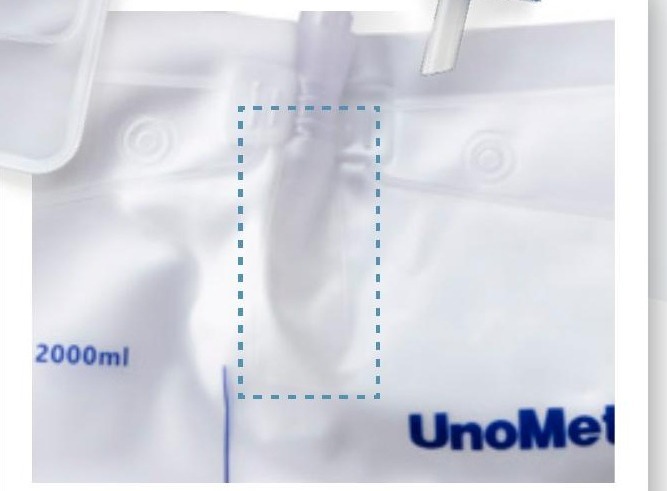

- Non Return Valve prevents backflow and supports a reduction in retrograde infection risk

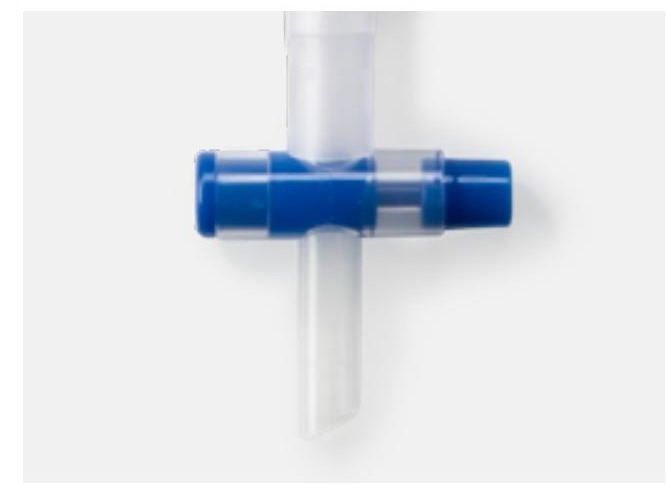

- Single handed operation of emptying valve
- High quality hydrophobic front filter that secures continuous flow in wet conditions and prevents bacteria and viruses to enter

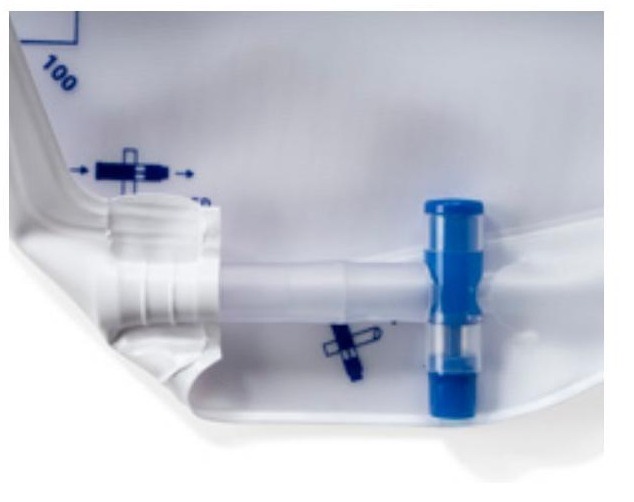

- Option to maximise floor clearance and reduce the risk of cross contamination

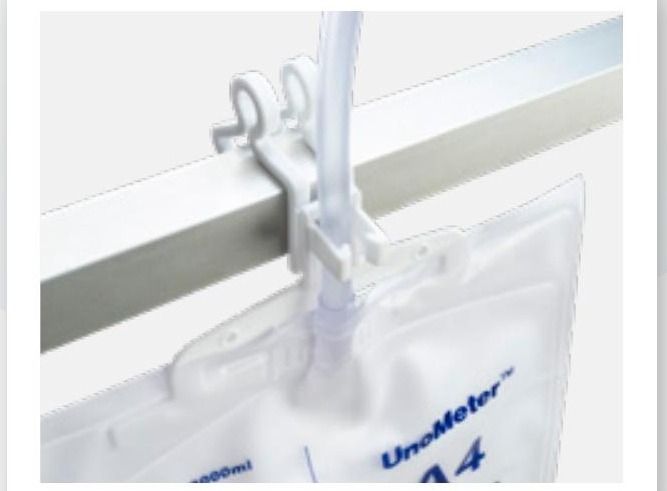

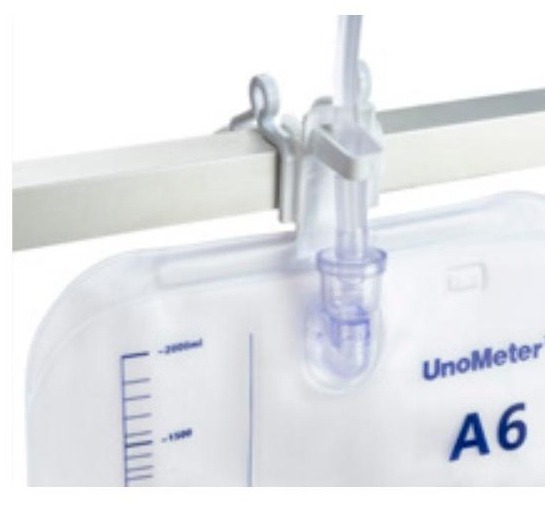

- Option for integrated hanger solutions

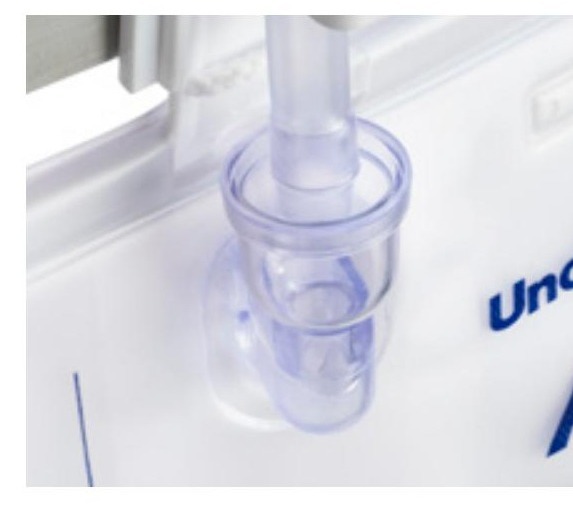

- Drip chamber with dry-zone (A6 only)

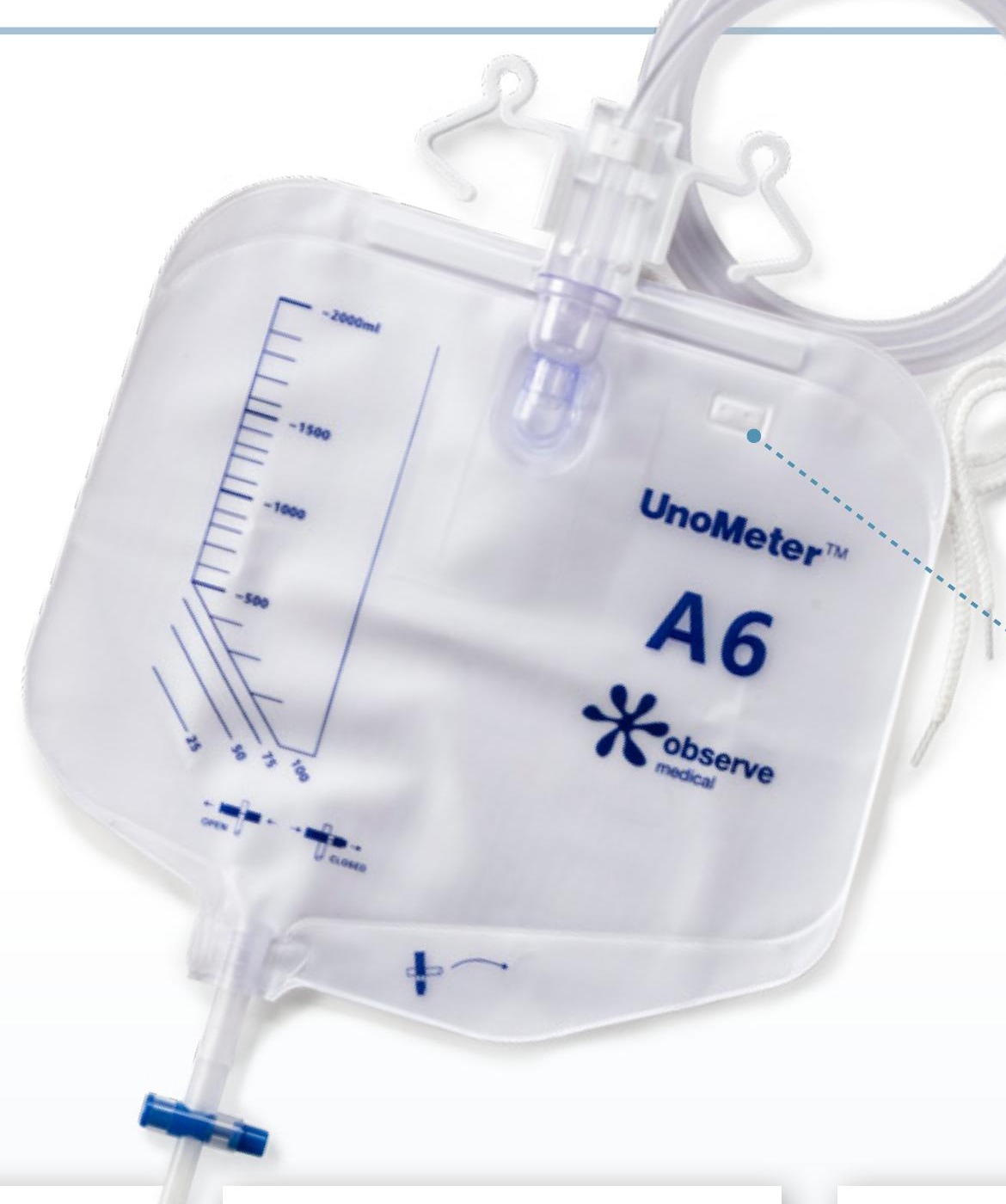

A6
A6 has a hydrophobic filter that enables continuous flow in the system, even in wet conditions. The filter has documented barrier effect against bacteria and viruses.
UnoMeter™ A6 & A4
Both A6 and A4 offer proven solutions:

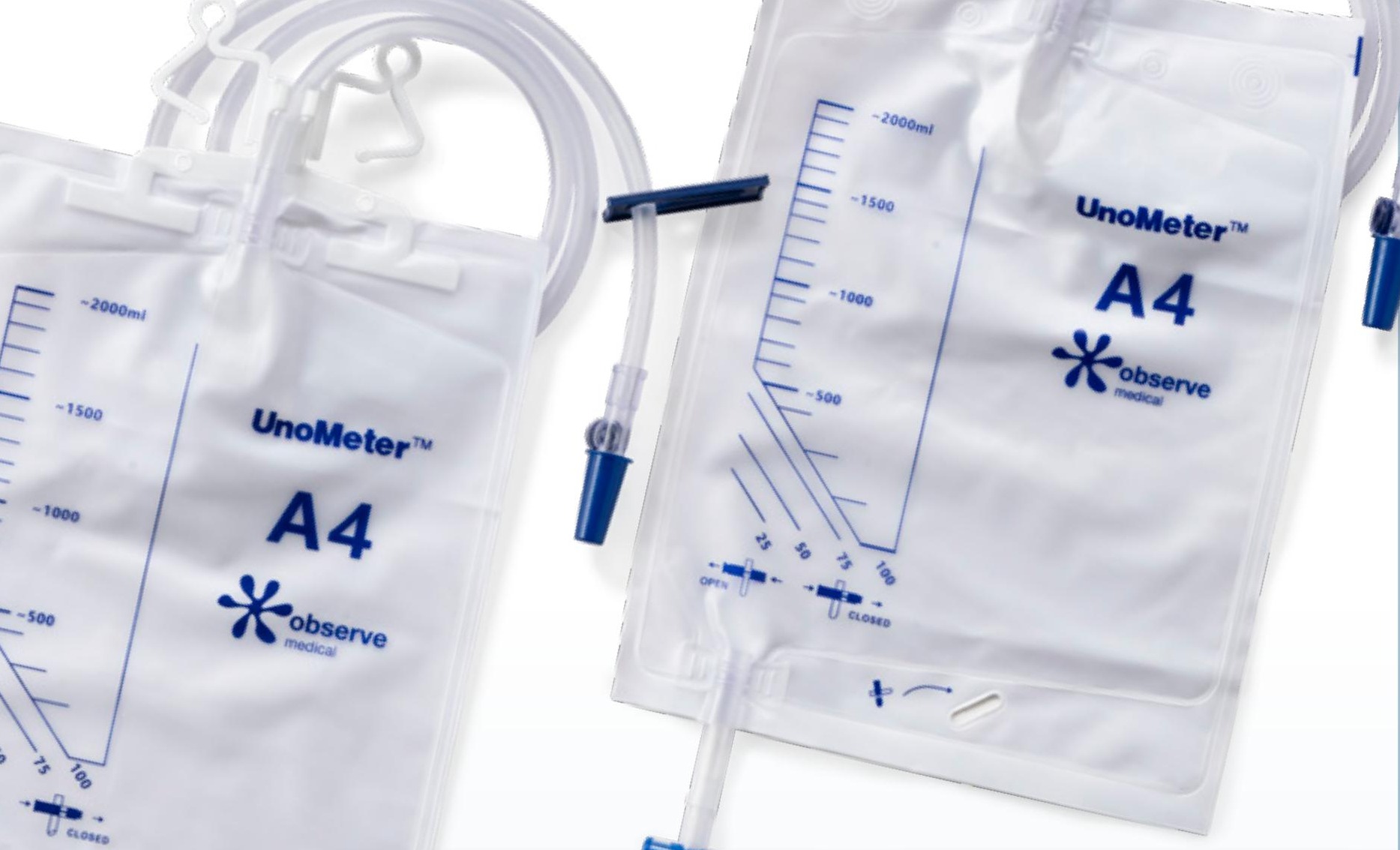

A4
Product range

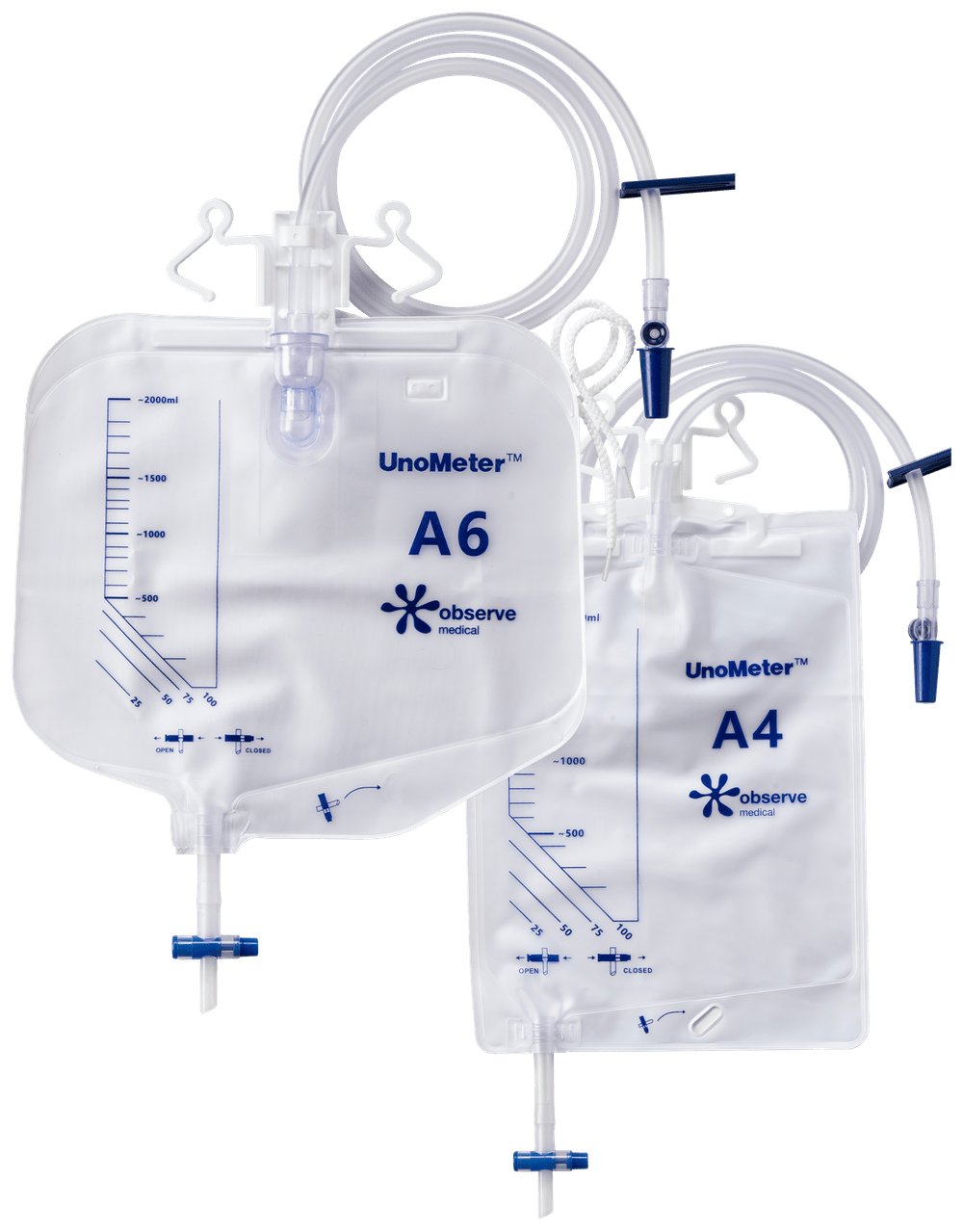

UnoMeter™ A6 and A4
Working closely with healthcare professionals, UnoMeter™ A6 and A4 has been carefully designed to ensure reliable performance during actual clinical use. Moreover, every care has been taken to make UnoMeter™ A6 and A4 as simple and safe to use.
UnoMeter™ A6 and A4. Sterile Closed System bags

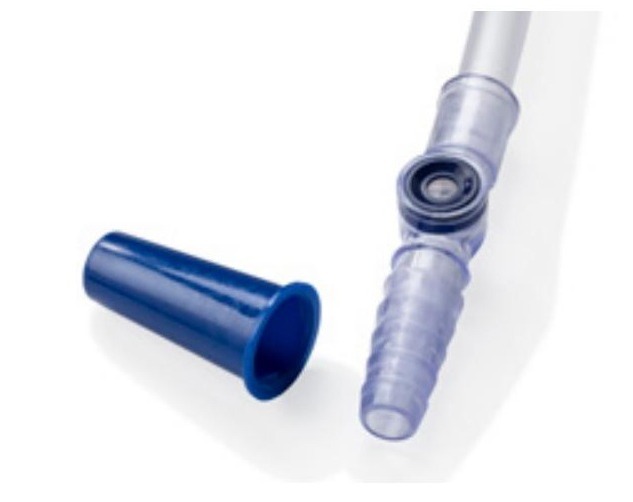

| REF No | Description | Bag volume | Tube length | Sterile | Hanger | Needle-free sample port | Cap | Tube Clamp | Front filter | Drip chamber | Bottom outlet valve |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50404 | A6, Sterile closed system bag, 120 cm, NRV, Hanger | 2000 ml | 120 cm | • | Yes - hook and cord | • | • | • | • | • | • |
| 50417 | A6, Sterile closed system bag, 100 cm, NRV, Hanger | 2000 ml | 100 cm | • | Yes - hook and cord | • | • | • | • | • | • |
| 50400 | A4, Sterile closed system bag, 120 cm, NRV, Hanger | 2000 ml | 120 cm | • | Yes | • | • | • | • | ||
| 50405 | A4, Sterile closed system bag, 100 cm, NRV, Hanger | 2000 ml | 100 cm | • | Yes | • | • | • | • | ||
| 50403 | A4, Sterile closed system bag, 120 cm, NRV | 2000 ml | 120 cm | • | No | • | • | • | • | ||
| 50399 | A4, Sterile closed system bag, 100 cm, NRV | 2000 ml | 100 cm | • | No | • | • | • | • |
Material specifications
| Contains latex or DEHP? | No |
|---|---|
| Connector and cap | PVC, PE |
| Tube | PVC |
| Hanger | PP |
| Cord (A6 only) | Polyester |
| Bag | PVC |
| Tube Clamp | ABS |
| Filter (A6 only) | ePTFE Membrane |
| Drip chamber (A6 only) | PVC |
| Bottom outlet valve incl. tube | PE, PE, PVC |
Storage and handling
Instructions for use included.
Sterilization
| Sterile? | Yes |
|---|---|
| Sterilized by | Ethylene oxide |
| Shelf life | 3 years |
Certifications
| CE-marking? | Yes |
|---|---|
| Product classification | Class I, sterile (EU) |
| Quality system certified to | ISO 13485 |
| Global Medical Device Nomenclature (GMDN) | 58921 |
| EMDN Code | A06030301 |
Packaging specifications
| REF No | Shipping Carton | ||||
|---|---|---|---|---|---|
| Quantity (pcs) | Dimensions (mm) L x W x H | Gross Weight (kg) | Piece identifier GTIN - UDI | Inner carton identifier GTIN - UDI | |
| 50404 | 50 | 530x400x280 | 7,6 | 06972241504040 | 16972241504047 |
| 50417 | 50 | 530x400x280 | 7,3 | 06972241504170 | 16972241504177 |
| 50400 | 60 | 530x400x280 | 7,8 | 06972241504002 | 16972241504009 |
| 50405 | 60 | 530x400x280 | 7,4 | 06972241504057 | 16972241504054 |
| 50403 | 80 | 530x400x280 | 9,5 | 06972241504033 | 16972241504030 |
| 50399 | 80 | 530x400x280 | 9,0 | 06972241503999 | 16972241503996 |
MAS-1356-v2.0
